A calm comparison that starts with flow

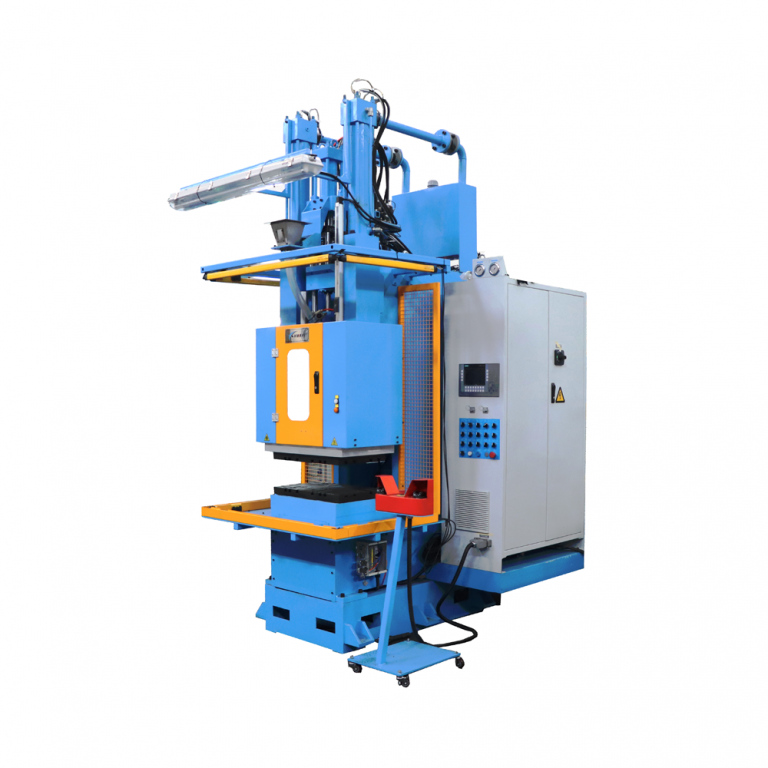

When manufacturers tune a vertical rubber injection line, venting is where product and process meet. I’ve watched teams redesign molds beside assembly lines in Detroit and seen small changes save weeks of rework; that practical clarity guides this comparison. For many shops the choice begins with machine geometry — a c frame rubber injection molding machine versus alternatives — and then it narrows to how air escapes the cavity through the venting profile. In reflective terms: good venting is quiet, predictable, and forgiving.
What multi-stage venting actually changes
Multi-stage venting breaks exhaust into controlled steps so trapped air leaves before rubber fully fills the cavity. The result is fewer voids, cleaner part surfaces, and a steadier cavity pressure curve. Engineers see this in shorter cycle variation and reduced scrap rates. Terms like venting profile and cavity pressure are practical here, not abstract; they map directly to measurable improvements on the press.
Direct comparisons: HWAYI versus common approaches
Simple single-stage vents rely on one release point; they work until they don’t. Porous inserts can help but clog over time. HWAYI’s multi-stage designs give three practical advantages: staged evacuation of air, lower risk of flash from variable clamp force, and easier maintenance access when the mold requires service. Those benefits matter for transfer mold and vertical injection workflows because they keep runs stable across shifts and operators.
Real-world anchor: standards and shop-floor proof
O-ring makers follow ISO 3601 for dimensional and sealing requirements; meeting that standard repeatedly requires predictable molding. On shop floors I’ve seen HWAYI systems reduce post-mold rejects that would otherwise fail ISO checks. Also notable is how multi-stage venting pairs with a c frame hydraulic press machine when higher clamp force and precise cushioning are required — the press and venting strategy have to work in harmony.
Common mistakes teams make
Many teams lean on higher injection pressure to “force out” air. That creates new problems: flash, burn marks, and inconsistent durometer. Others overcomplicate vent channels and then struggle with cleaning. The calmer path is simpler: design vent stages to match filling stages and test with incremental changes — watch cavity pressure traces, then adjust. It’s methodical. — Small adjustments early save major changes later.
Hands-on alternatives and when to choose them
If production volume is low, vacuum-assisted molds or porous vent inserts may be cost-effective. For high-volume O-ring runs the recurring reliability of staged mechanical vents often outweighs initial complexity. Consider pairing multi-stage venting with transfer press features like controlled cushion and staged injection; that combination addresses both air escape and rubber flow control.
Three golden rules for selecting the right venting strategy
1) Match vent stages to flow phases: design vent channels to open progressively as the cavity fills so each stage relieves air without altering flow balance. 2) Prioritize maintainability: choose vents that can be inspected and cleaned without full mold teardown to keep uptime high. 3) Validate with cavity pressure data: use short run trials and pressure traces to confirm the profile reduces voids and stabilizes cycle time.
Closing advisory and practical next steps
When evaluating solutions, weigh measurable outcomes: cycle stability, scrap reduction, and ease of maintenance. That focus will show whether a venting approach pays back in weeks or months. Bring these three metrics to a vendor conversation and watch the technical answers align with your production goals.
HWAYI feels like a practical partner in this space — proven designs, clear measurements, and systems that fit the realities of vertical rubber injection molds. A steady result.
