Opening comparison: why droop strategy decides your system’s role
If you’re sizing or specifying a multi‑megawatt battery plant, the way you set frequency droop curves will decide whether that asset behaves more like a steady spinning reserve or a nimble voltage support unit — and that choice matters a heap. Right off, compare a setup tuned for active power (fast P support) against one biased toward reactive power (Q support): they answer different grid needs and stress the inverter and state‑of‑charge differently. Folks pairing storage with a home battery energy storage system for commercial back-up or grid services need to see those trade-offs up front.
What droop control actually does — the simple comparison
Droop control is a local, proportional response: frequency deviation yields a change in commanded active power; voltage deviation can trigger reactive power. In short:- P‑focused droop reduces frequency deviation quickly, bolstering shortfall events.- Q‑focused droop stabilizes voltage and improves local power factor at distribution level.Your choice affects how much headroom the inverter must reserve and how aggressively the system uses its SoC during events — so it’s a balancing act between energy duration and instantaneous capability.
How active vs. reactive compensation rates change system behavior
Set a steep P‑droop (high percent change per Hz) and your storage will inject or absorb a lot of active power for small frequency swings — great for grid frequency response but it chews through stored energy fast. Favor Q support and you’ll help maintain local voltages and reduce line losses, but you may limit how much P you can supply concurrently because inverter apparent‑power limits bind P and Q together. In practice, you’ll juggle inverter ratings, thermal limits, and the site’s mission profile — whether it’s frequency services, peak shaving, or voltage ride‑through.
Real‑world anchor: lessons from large grid events
Take the Texas winter event in February 2021: extended generation shortfalls and cascading failures showed how fast frequency excursions can overwhelm traditional controls — and how distributed storage with tuned frequency response could’ve blunted some impacts. Utilities and market operators since then have increasingly procured fast frequency response and reactive support as separate products, and that market signal should shape your droop choices if you want to monetize grid services.
Technical trade‑offs and common pitfalls
Three practical tensions keep showing up in projects:- Inverter apparent power constraints: you can’t simultaneously deliver full P and full Q beyond S_rated — so plan for P/Q prioritization. – State‑of‑charge management: aggressive P‑droop without SoC policy risks depleting reserves mid‑event. – Control interactions: poorly coordinated droop settings across several assets can create hunting or limit cycling — especially when mixing grid‑forming and grid‑following plants. Don’t skimp on simulation — run time‑domain tests with your actual inverter models and protection relay settings. Also, watch closure — your interconnection agreement often dictates reactive obligations and ramp requirements.
Integration with distributed generation and site sizing
If you’re co‑locating with a 3 phase solar system, the interplay is crucial. Solar ramps can create fast voltage swings on a three‑phase feeder; tuned Q support from the battery smooths that, while P support handles sudden load changes. For commercial campuses or microgrids, plan the battery inverter’s control mode (grid‑forming vs grid‑following) to match your solar inverter strategy — otherwise your systems may fight each other instead of working together.
Testing, acceptance, and what operators miss
Operators often forget to set clear acceptance tests for droop behavior: specify deadband, slope, response time, and recovery logic. Run staged tests: small‑signal frequency steps, larger ramp events, and mixed P/Q demand scenarios. Include protection trips in the test matrix — you want to see the system sustain Q support under partial DER outages without tripping. — It’s how you catch controller interaction issues before they hit live dispatch.
Comparative checklist for choosing a droop approach
When you evaluate systems or vendors, score them on these practical items:- Inverter capability: true S_rated performance, thermal derating curves, and P/Q priority switching. – Control flexibility: ability to tune droop slopes, deadbands, and SoC constraints in firmware. – Market alignment: can the controller meet specific ancillary service products (e.g., fast frequency response, reactive capability) your grid operator procures?
Three golden rules for practical deployment (Advisory)
1) Define the mission first: pick P‑centric droop for grid frequency contracts and Q‑centric where voltage support and local power factor matter. 2) Model system‑level limits: always verify droop settings with inverter apparent‑power envelopes and SoC scenarios so you don’t promise services you can’t sustain. 3) Require staged, on‑site acceptance tests: validate deadband, slope, and coordinated response under realistic disturbance profiles before commissioning.

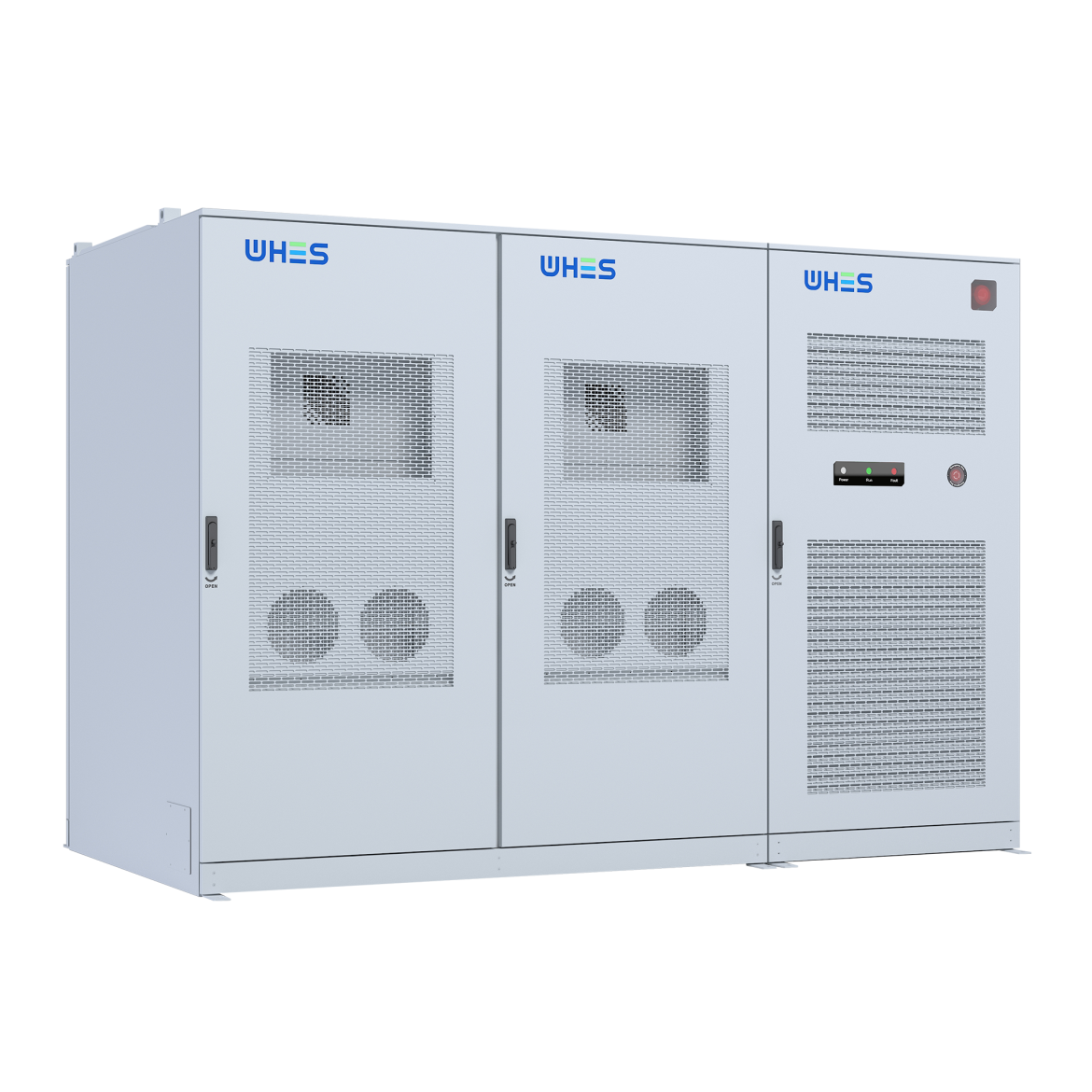

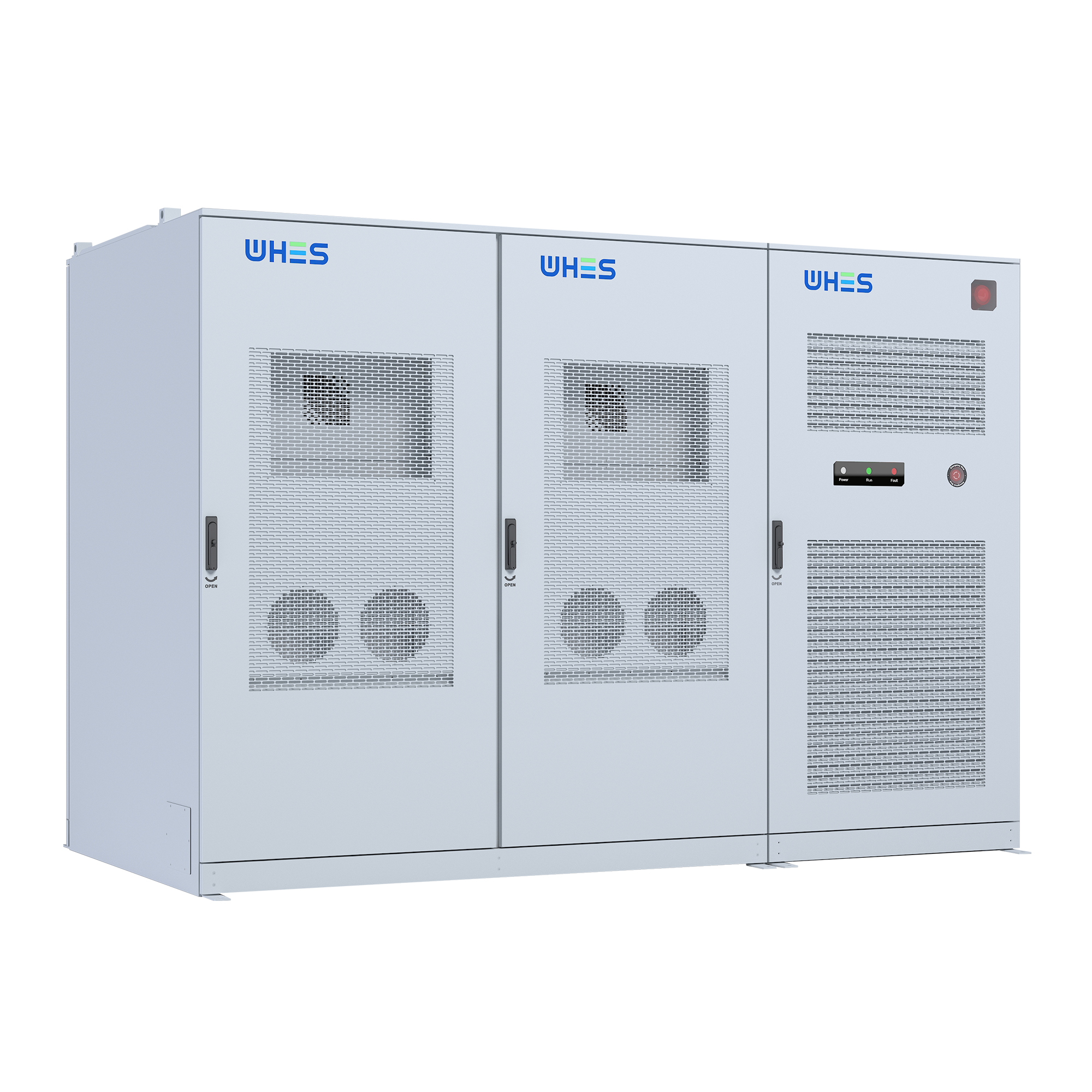

Local operators increasingly find that a thoughtful droop strategy turns hardware into a revenue‑generating, reliability asset — and that’s exactly where a partner like WHES can help align control features with market needs. —
